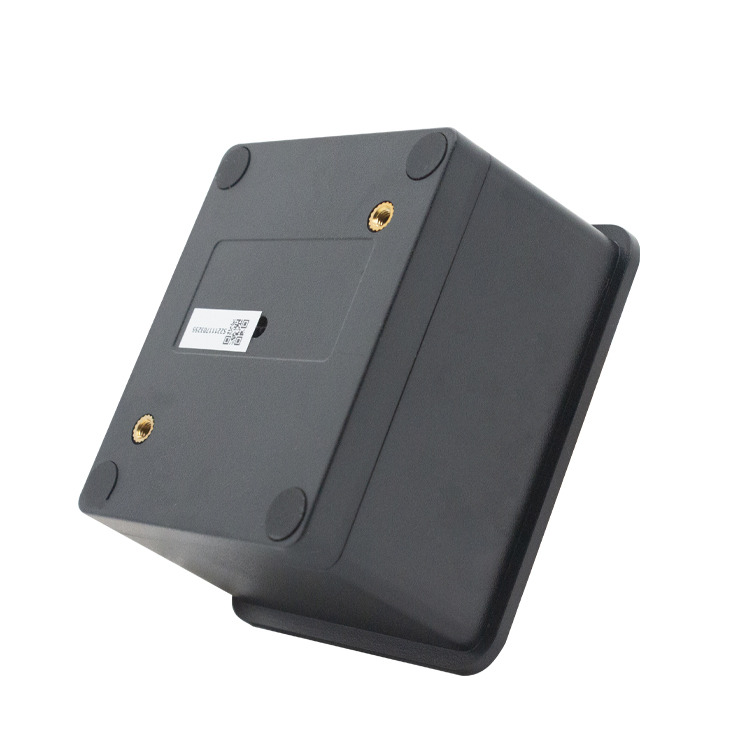

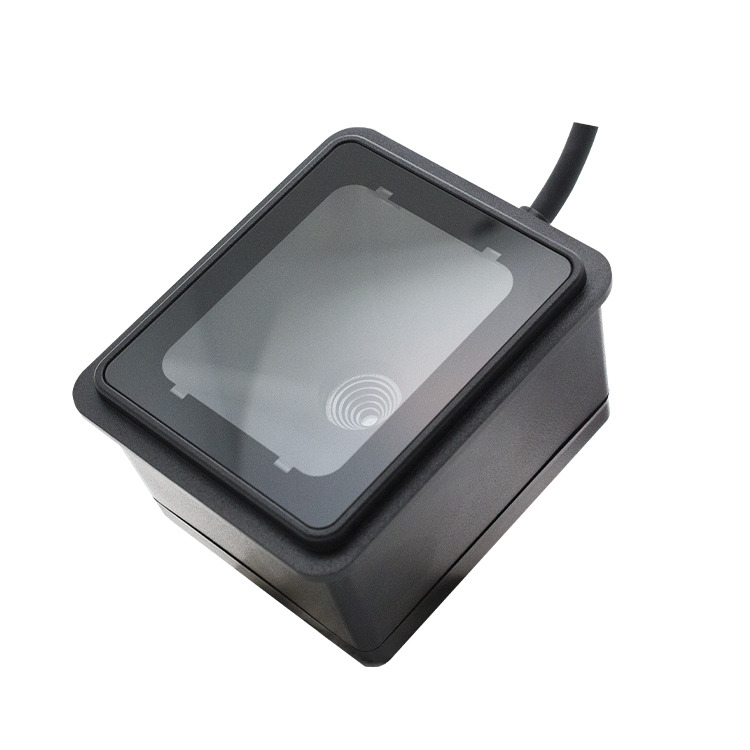

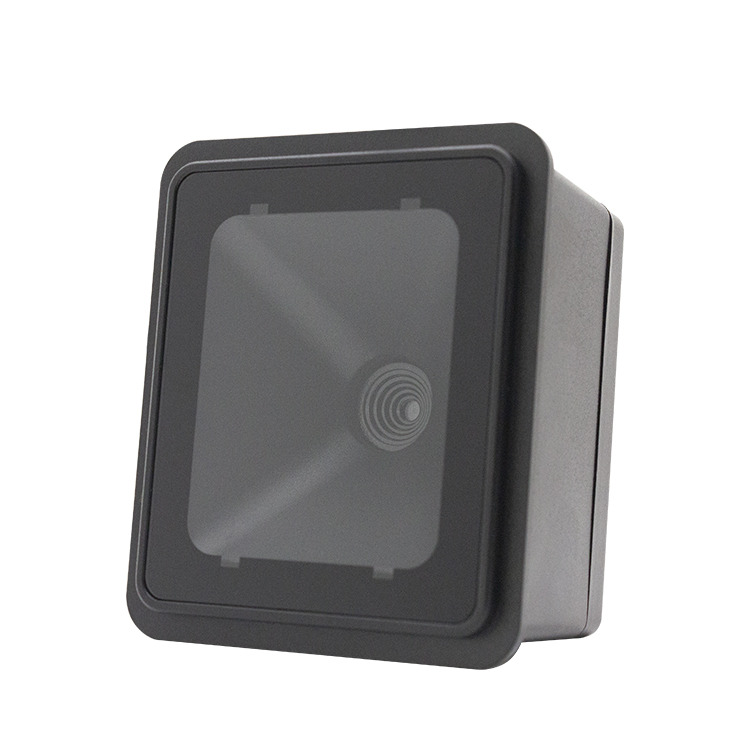

XL-7160
Fixed-mount 2D scanning built for fast gate throughput. The XL-7160 pairs a 640x480 CMOS imager with a 72 deg (H) x 64 deg (V) wide field of view to cover more area per shot, and reads phone screen codes even without backlight. Built-in RS232 and USB, 3.3-5 VDC supply at only 200 mA, and object auto-sense triggering with no external switch. The compact 77.5x66x45 mm, 75 g housing works from -50C to 85C with 0-100,000 Lux ambient light immunity and 1.5 m drop resistance - ideal for turnstile access, healthcare self-service and specimen ID, and cinema or station ticket validation.
- Large 72 deg (H) x 64 deg (V) field of view, 640x480 CMOS imager
- Reads phone screen codes even without backlight
- Built-in RS232 and USB interfaces
- Object auto-sense triggering, no external switch
- Direct multi-language data transfer to the host
- Omni-directional 1D/2D: PDF417, Data Matrix, QR, Aztec, Hanxin and more
- Motion tolerance over 2 m/s, resolution from 3.9 mil
- -50C to 85C operating range, 0-100,000 Lux ambient light immunity
- 1.5 m drop resistance, 77.5x66x45 mm / 75 g
- Ideal for turnstiles, healthcare and ticketing terminals
