XL-M3609 - Fixed-Mount Scanners

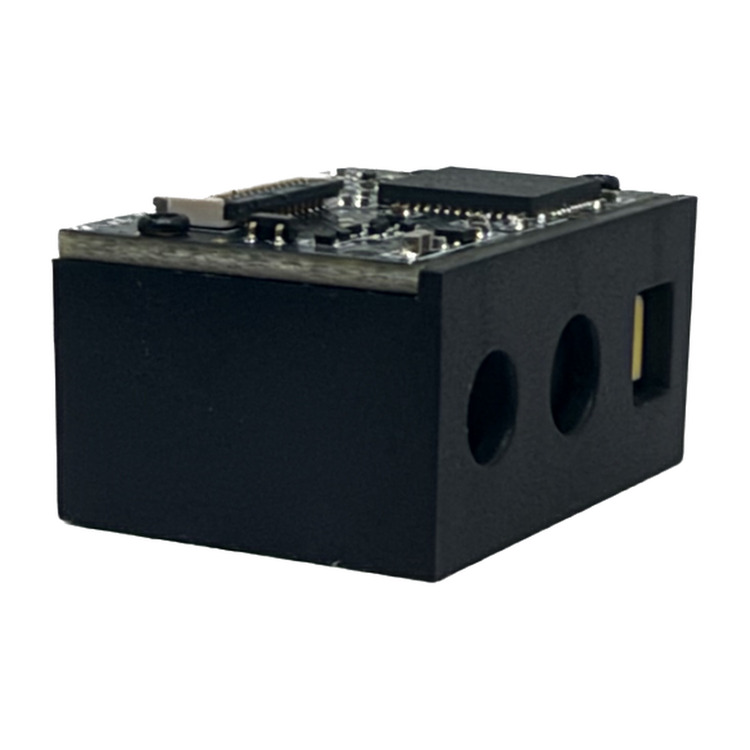

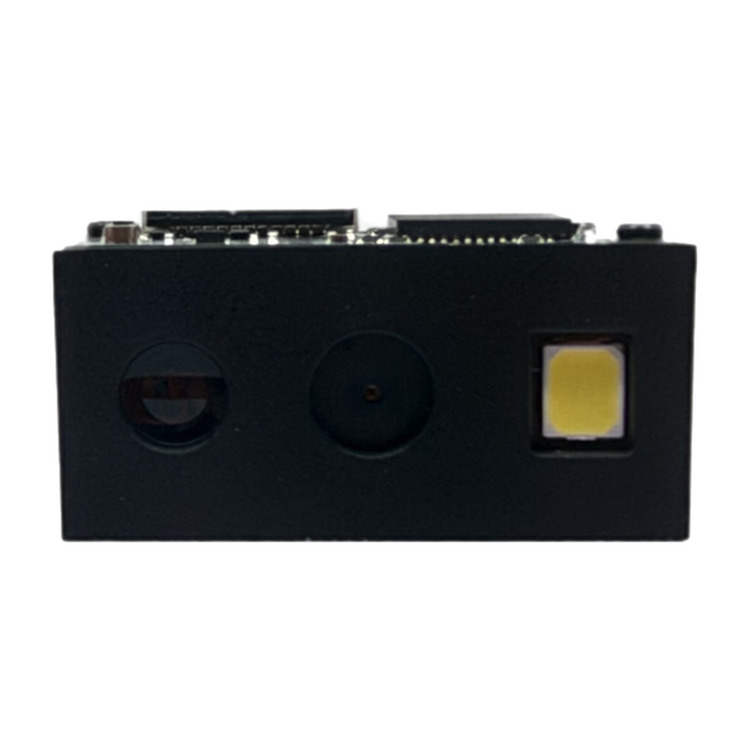

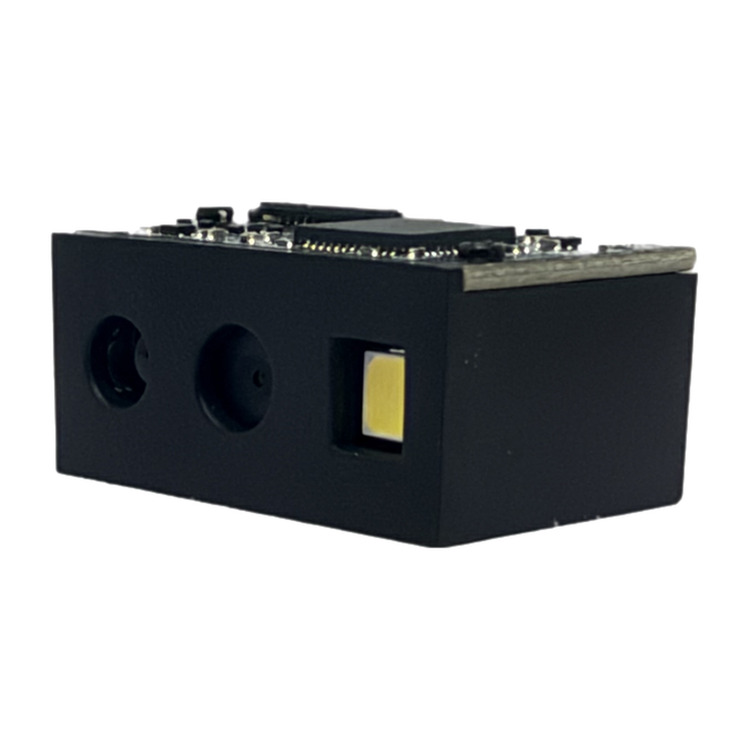

XL-M3609 - Fixed-Mount Scanners 图片1 XL-M3609 - Fixed-Mount Scanners 图片2 XL-M3609 - Fixed-Mount Scanners 图片3
OEM Barcode Engines

XL-M3609

A tiny scan engine built on a high-performance decoding core. The XL-M3609 pairs an 800x600 CMOS sensor with a white fill LED and red aiming LED, covering a 43 deg (H) x 33 deg (V) field of view. Precision reaches 3 mil for 1D and 7.5 mil for 2D with 20% minimum print contrast, and it decodes steadily at 360 roll, +/-60 pitch and +/-60 skew. Reading distance runs to 515 mm for Code128 (15.42 mil) and 420 mm for EAN13 (12.39 mil), starting from 75 mm for Code39 (5.42 mil). It reads damaged, distorted, dirty, blurred, colour, reflective, wrinkled, incomplete and folded 1D/2D codes, with manual, command-trigger, sense and continuous modes. At just 21.6x14.5x11.25 mm and under 10 g, it runs on +3.3 V DC +/-5%, drawing 215 mA working and 30 mA standby over USB, or 206 mA working, 22 mA standby and 15 mA sleep over UART. Interfaces cover TTL-UART and USB-KBW/POS/VCP with USB-HID as the factory default, switchable by setup code. A compact, lightweight engine for tablets, counters, data collectors, PDAs, ring scanners and handhelds.

  • algorithm; compact, light and easy to embed
  • 800x600 CMOS sensor with white fill LED and red aiming LED
  • 43 deg (H) x 33 deg (V) view; precision 3 mil (1D) and 7.5 mil (2D)
  • Print contrast from 20%; 360 roll, +/-60 pitch and +/-60 skew
  • Depth of field: Code128 40-515 mm, EAN13 45-420 mm, QR 40-250 mm
  • Depth of field: PDF417 55-175 mm, DM 70-120 mm, Code39 75-170 mm
  • Reads damaged, distorted, dirty, blurred, colour, reflective, wrinkled, incomplete and folded codes
  • Four reading modes: manual, command trigger, sense and continuous
  • 2D symbologies: QRCode (Mode1/Mode2), PDF417, DataMatrix, MicroPDF417, MicroQR, HanXin, Aztec, Maxicode and more
  • 1D symbologies: Code128/39/32/93, EAN13/8, UPC_A/E, ISBN13, ISSN, ITF25, RSS family; GS1 Composite
  • TTL-UART and USB-KBW/POS/VCP; USB-HID factory default, switchable by setup code
  • LED and beeper indication interfaces on BEEP / DLED pins
  • +3.3 V DC +/-5%; USB 215 mA working / 30 mA standby, UART 206 / 22 / 15 mA
  • 21.6 x 14.5 x 11.25 mm, under 10 g; standard 12-pin 0.5 mm connector
  • -20C to 60C operating, -40C to 70C storage, 5-95% RH non-condensing
  • Vibration 5-200 Hz / 10 Grms / 3 axes / 1.5 hr; 1.2 m drop; 24 thermal cycles
  • For tablets, counters, data collectors, PDAs, ring scanners and handheld scanners
