Barcode Scanners

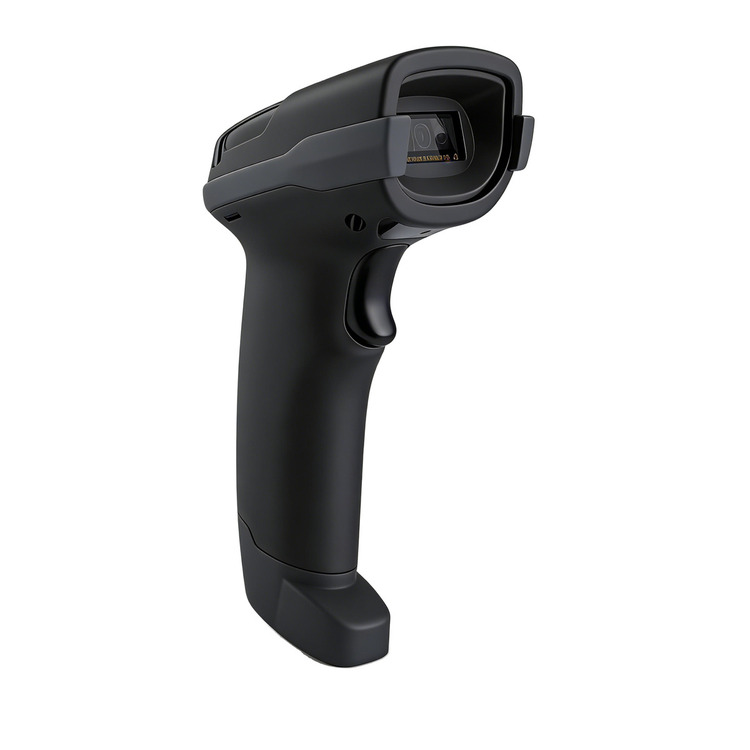

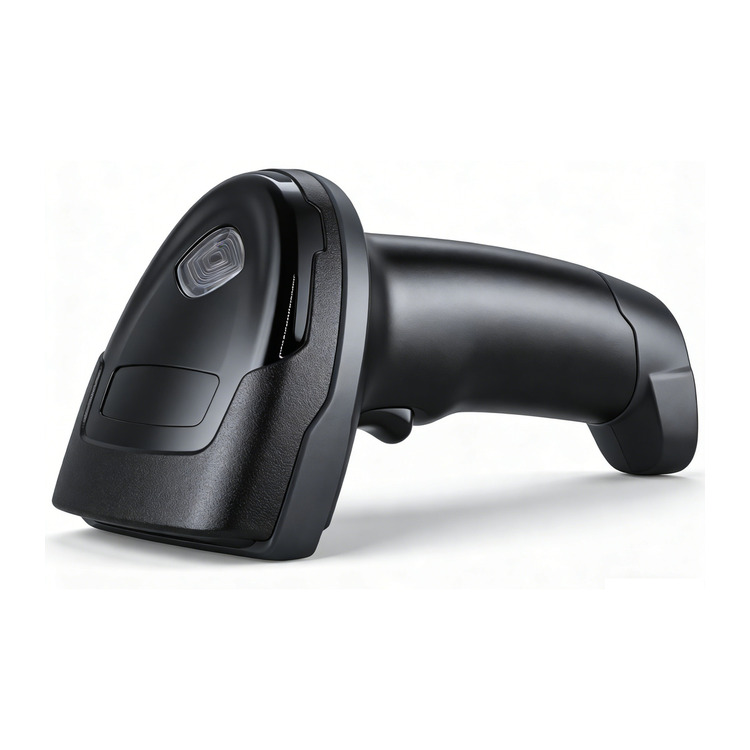

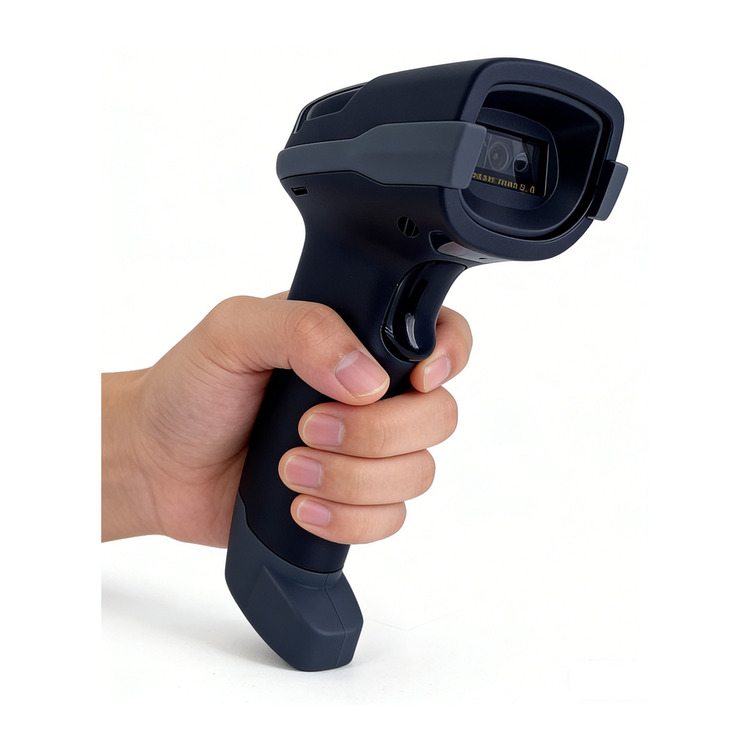

XL-S20-AI
Industrial wired barcode scanner. The XL-S20-AI combines a custom AI chip and deep-learning decoding to read even the toughest marks - inverted, low-contrast, dot-peened, obscured and tilted DPM codes - while a 1296x816 CMOS sensor with Multicolor Smart AE (red + white illumination by default) reads up to 5 codes in a single frame. USB (default), TTL and RS232 interfaces plus a bundled image tool make integration into industrial manufacturing and medical equipment straightforward.
- Custom AI chip with deep-learning decoding for tough codes
- 1296 x 816 CMOS image sensor
- Multicolor Smart AE: red + white by default, configurable per scenario
- Reads inverted, low-contrast, dot-peened, obscured, tilted-DPM and tiny codes
- Up to 5 codes read in a single frame
- DOF 45-140 mm; precision 1D >=3 mil / 2D >=5 mil
- Interfaces: USB (default) / TTL / RS232
- Bundled image tool for easy configuration and tuning
- Supports customer-specific development or customization
