OEM Scan Engines

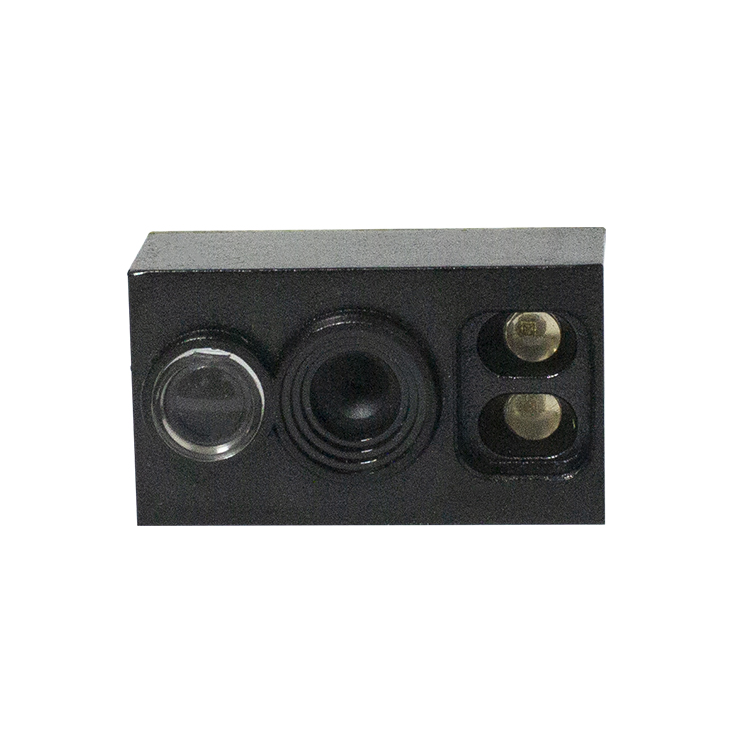

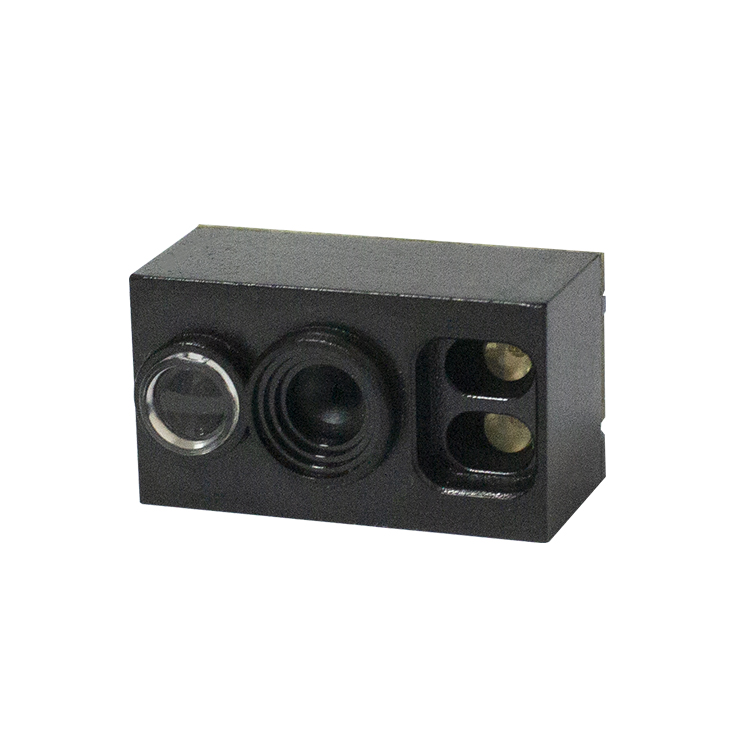

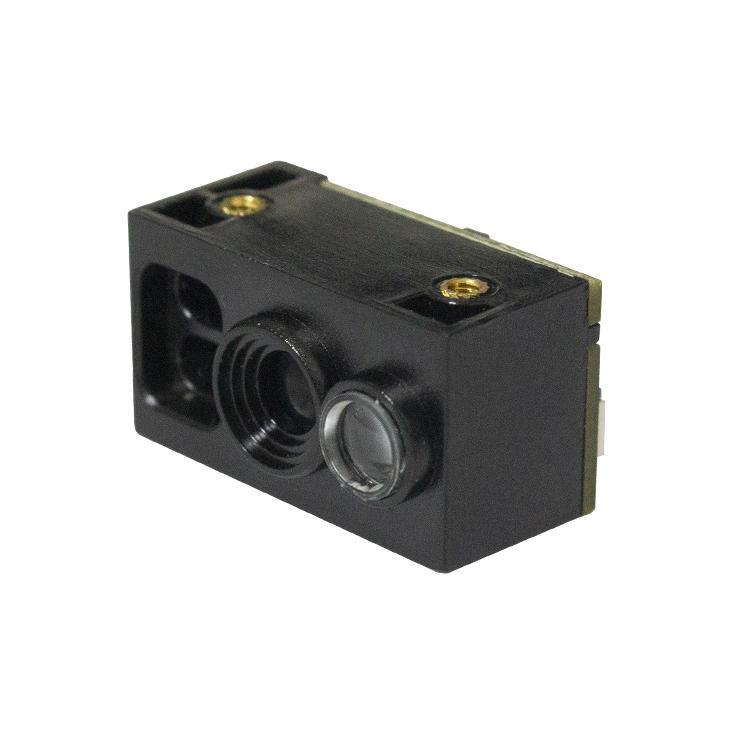

XL-108
Small size, high integration, built to embed. The XL-108 barcode scan module measures only 21.6 x 14.7 x 14 mm, with an integrated decode board and camera that fits easily into all kinds of housings. Powered by in-house core decoding technology, its 640x480 CMOS sensor with green LED aiming reads mainstream 1D/2D symbologies fast. TTL-232 and USB (HID-KBW, Virtual COM) interfaces, low-power DC 3.3 V supply and heartbeat monitoring keep it stable even under high-intensity and harsh working conditions - an ideal choice for integration and secondary development in scanner guns, POS terminals and handheld terminals.
- Ultra-compact 21.6 x 14.7 x 14 mm, integrated decode board and camera
- 640x480 CMOS, min. resolution >= 5mil, print contrast >= 25%
- QR Code, Data Matrix, PDF417, Aztec and full 1D symbologies
- Green LED aiming for clear positioning
- TTL-232 / USB (HID-KBW, Virtual COM) interfaces
- DC 3.3 V supply, 200 mA operating / 70 mA standby
- Heartbeat monitoring for high-intensity and harsh environments
