Access Control

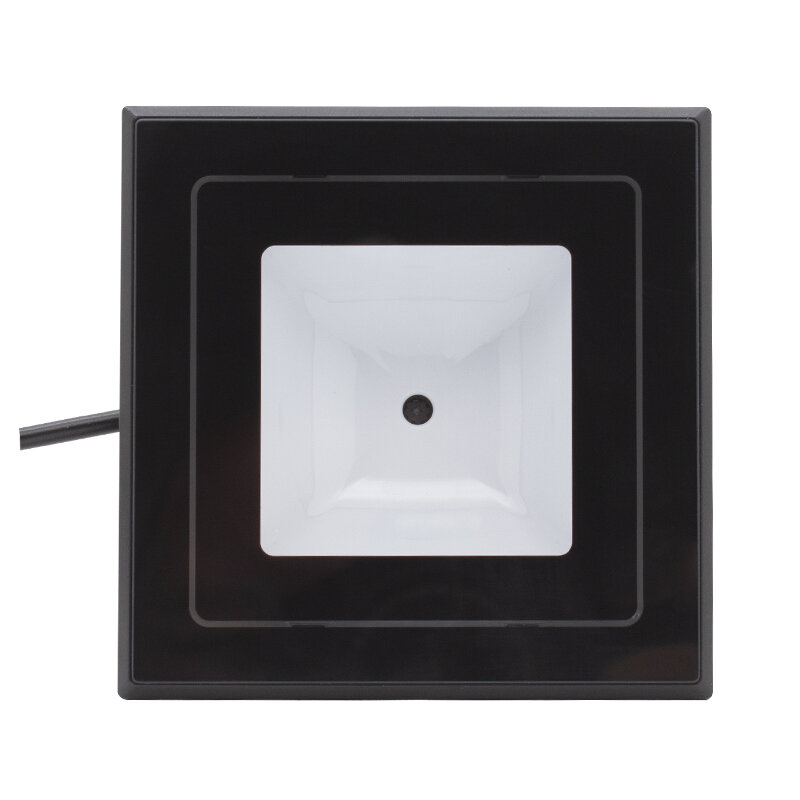

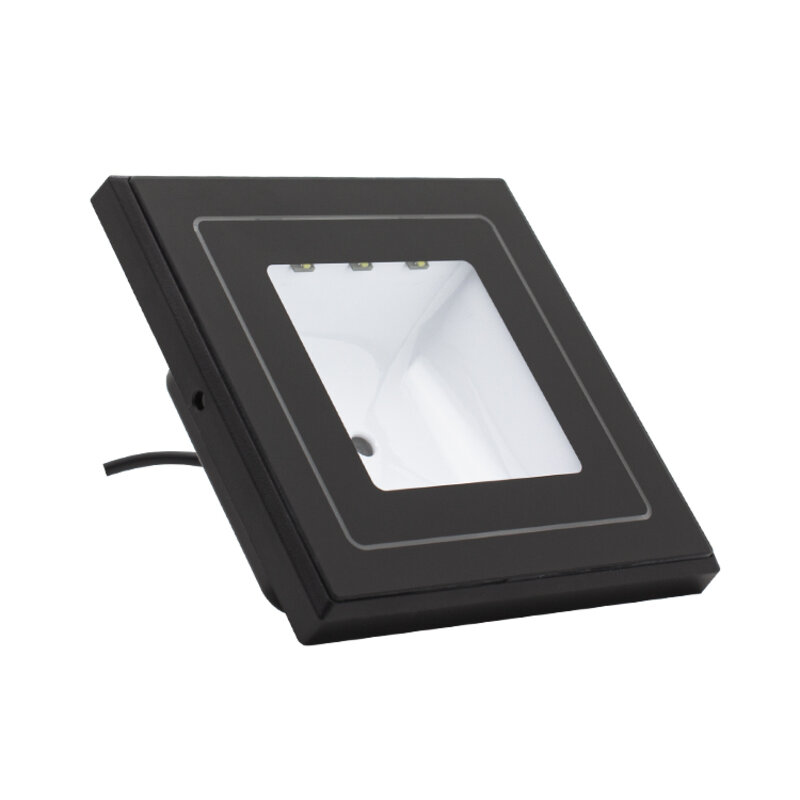

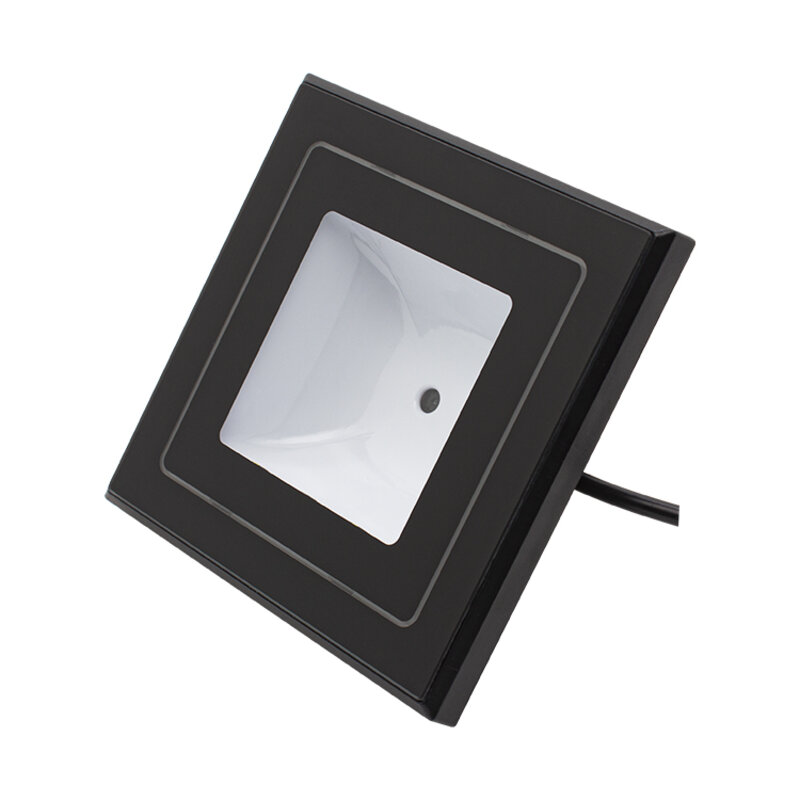

D52-E
NFC card reading plus barcode scanning in a standard 86-box panel. The D52-E access control reader supports Mifare-compatible cards, ISO/IEC 14443A standard cards, NFC phones and 2nd-generation ID UID, while also scanning mainstream 1D and 2D codes. Its 86.21 x 86.21 x 32 mm square panel drops straight into standard 86-box back boxes and access panels, with side fixing holes and a 20 cm cable. IP65 rated for -20C to +60C operation, indoors or outdoors. USB, serial, Ethernet and Wiegand interfaces with HTTP, HTTPS, TCP and UDP transmission integrate easily with access controllers and turnstile mainboards.
- NFC + barcode dual mode: Mifare-compatible cards / ISO/IEC 14443A / NFC phones / 2nd-gen ID UID
- Barcode reading: CMOS 640x480, precision >=7 mil, DOF 10-100 mm, contrast >=30%

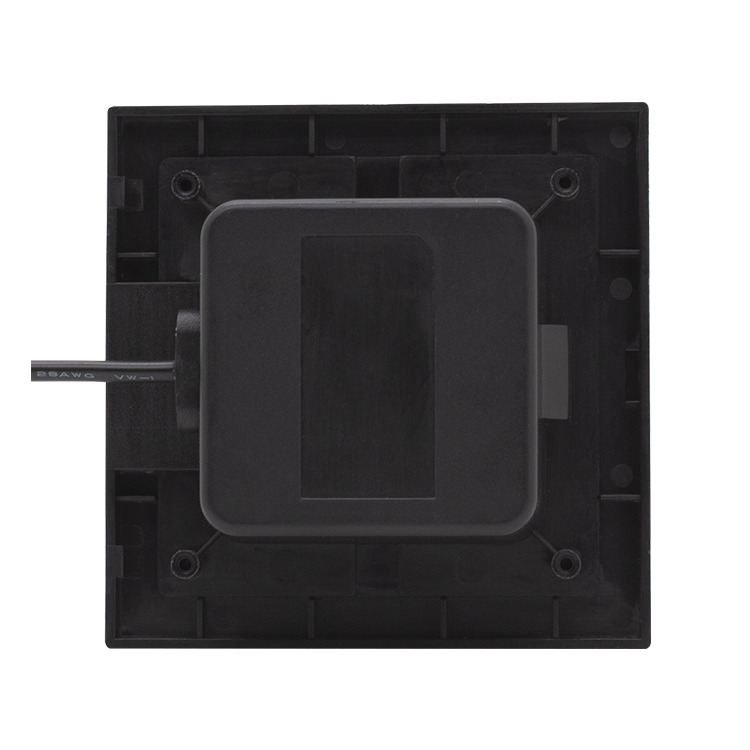

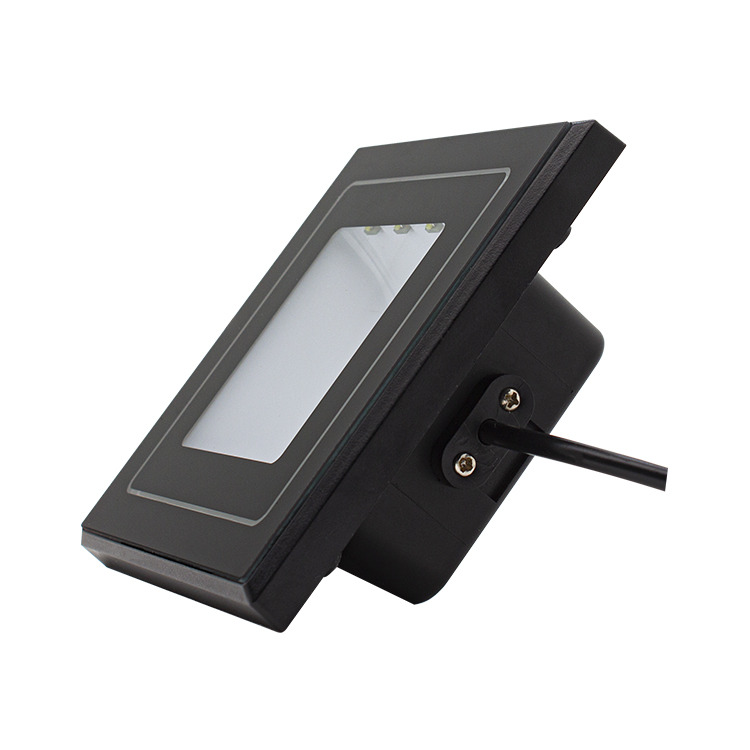

- Standard 86-box size: 86.21 x 86.21 x 32 mm, side fixing holes, 20 cm cable, 260 g
- IP65 water and dust resistant, operating -20 to +60 C, indoors or outdoors
- Interfaces: USB / serial / Ethernet / Wiegand with HTTP, HTTPS, TCP, UDP
- Power: DC 5-24 V wide range, 200 mA operating / 240 mA max, 1W / 1.2W
- Automatic / motion-sensing trigger, buzzer feedback, config barcode, firmware upgrade
- Ambient light 0-100,000 LUX; roll 360 deg, pitch +/-60 deg, skew +/-40 deg
