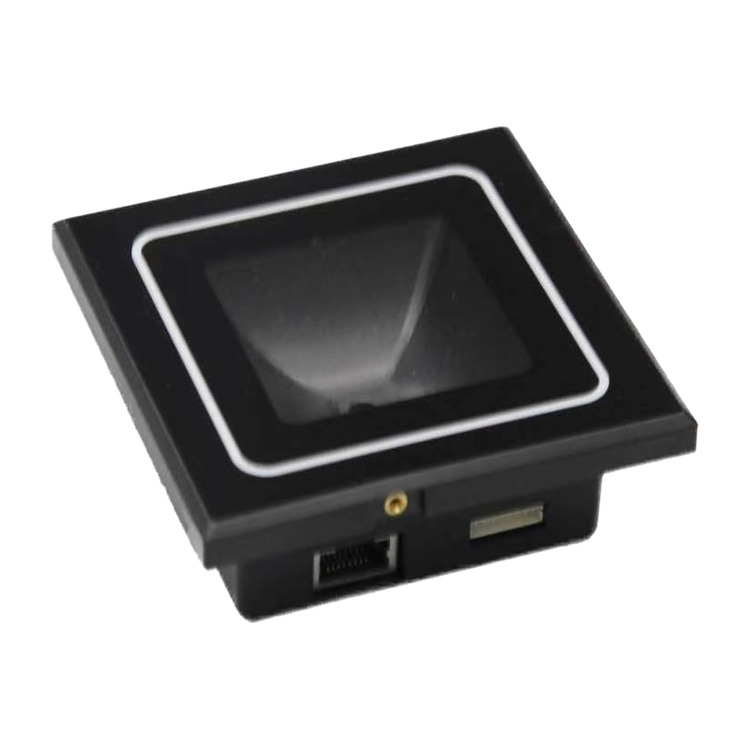

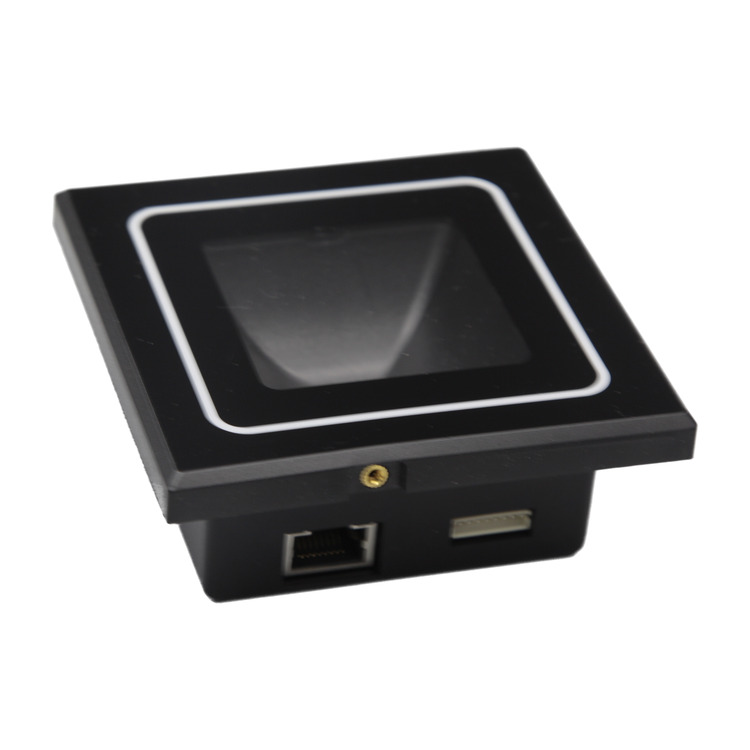

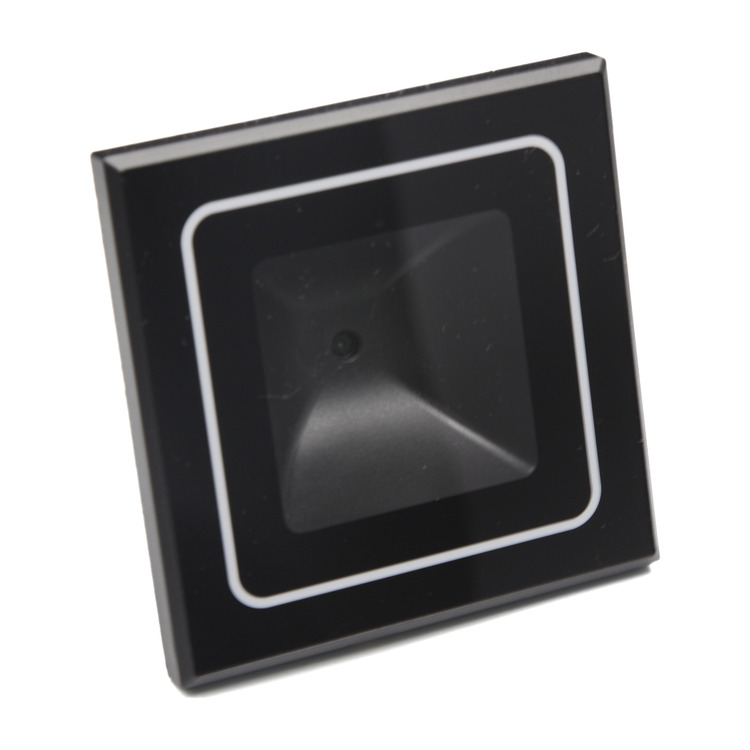

XL-E53-A
An embedded scan module that reads barcodes and cards from one board. The XL-E53-A carries a 640x480 CMOS engine with white LED illumination, decoding 1D codes, 2D codes and phone screen codes with 7 mil precision, 10-100 mm depth of field and 30% print contrast, at 360 roll, +/-60 pitch and +/-40 skew. Beyond barcodes it reads Mifare-compatible cards, ISO/IEC 14443A cards, NFC phones and second-generation ID card UIDs, with HTTP/HTTPS/TCP/UDP protocols for direct back-end integration. Interfaces cover USB, TTL, RS232, RS485 and Wiegand, with optional WIFI and Bluetooth; DC 5-24 V wide input draws 250 mA maximum and 200 mA working at 1.25 W peak. Automatic and motion-sense triggering, beeper feedback and config-barcode setup, 0-100,000 LUX ambient range and -20C to 60C operation. A compact 86.8x86.8x36 mm, 260 g body with mounting holes on both sides and a 30 cm cable fits self-service terminals, logistics, finance, transportation and healthcare equipment, as well as access control gates and ID verification terminals.
- 640x480 CMOS engine with white LED illumination, 1D and 2D
- Precision from 7 mil; depth of field 10-100 mm; contrast from 30%
- 360 roll, +/-60 pitch, +/-40 skew for moving barcodes
- Reads Mifare / ISO14443A cards, NFC phones and ID card UIDs
- Network protocols HTTP / HTTPS / TCP / UDP
- USB / TTL / RS232 / RS485 / Wiegand, optional WIFI / Bluetooth
- Automatic and motion-sense triggering, beeper, config barcode setup
- DC 5-24 V wide input, 250 mA max and 200 mA operating current
- 1.25 W maximum and 1 W operating power for embedded designs
- 0-100,000 LUX ambient; -20C to 60C working, -40C to 70C storage
- 86.8x86.8x36 mm and 260 g, mounting holes both sides, 30 cm cable
- EMC: EN55022 / EN55024; electrical safety: EN60950-1
