Fixed-Mount Scanners

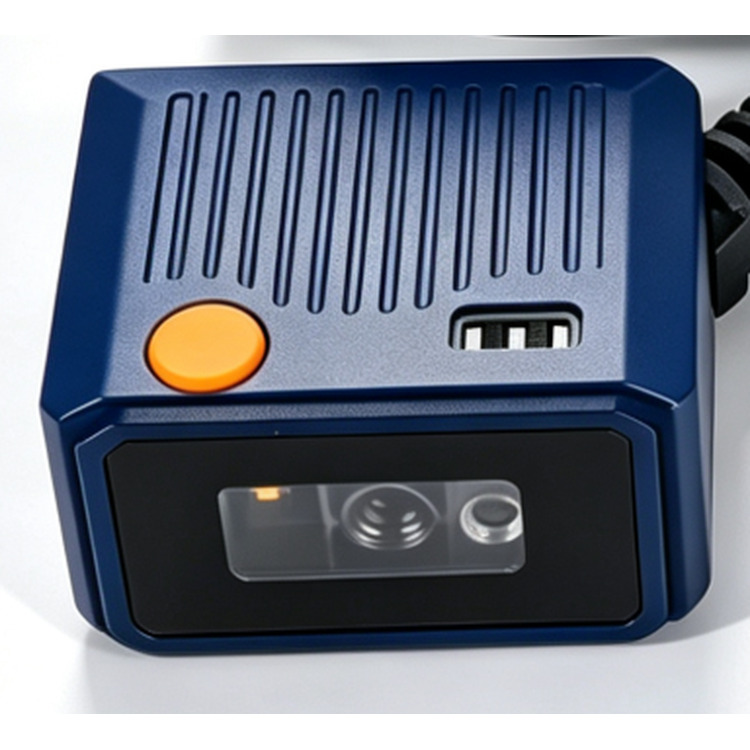

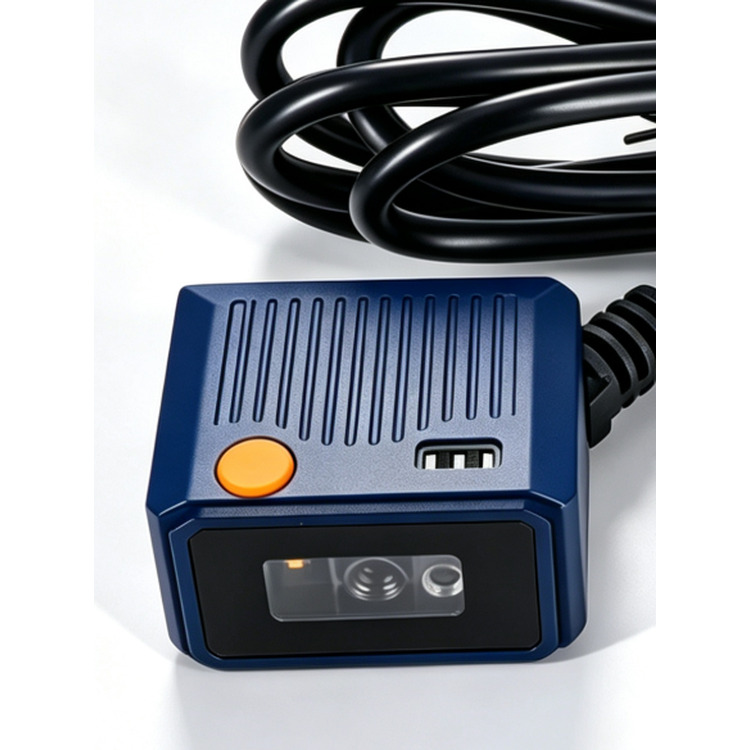

XL-5090

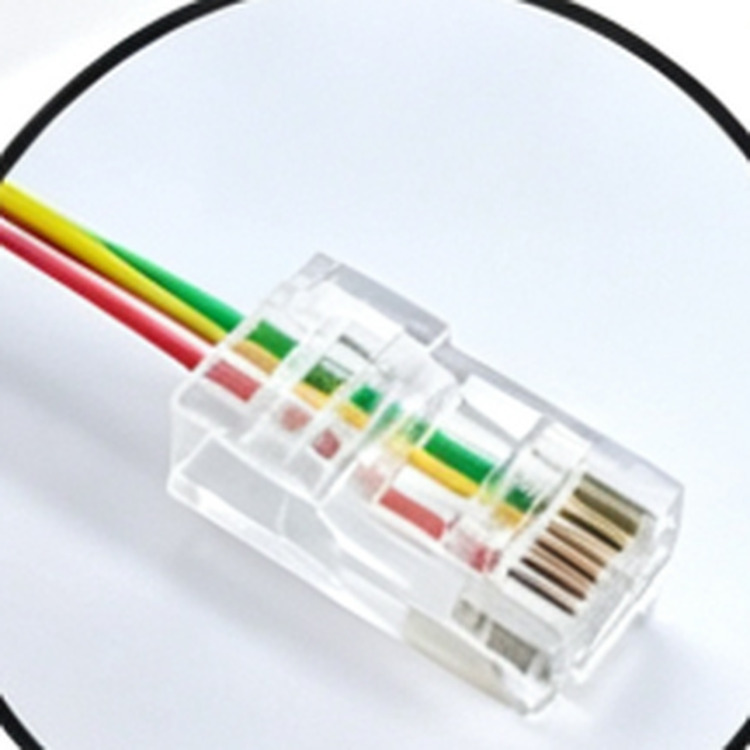

Plug into your existing network. The XL-5090 fixed-mount barcode scanner has a built-in RJ45 Ethernet port, so a single cable connects it to the host PC, MES or WMS system with no serial/USB converter and stable long-distance transmission. Its die-cast zinc alloy housing, IP54 protection and 1.5 m drop resistance handle tough sites such as logistics sorting and production traceability, while the 1280x800 sensor and >=3.3 mil resolution together with dual status LEDs (link and data) and a pluggable terminal block make installation and maintenance easy.
- Built-in RJ45 Ethernet port, no converter, direct MES / WMS connection
- 1280x800 high-resolution reading, >=3.3 mil precision
- Die-cast zinc alloy housing, IP54 dust and water protection
- 1.5 m drop resistance, 10H@125RPM vibration tested
- Dual status LEDs: D7 green for link, D6 blue for data transfer
- Ethernet / RS232 / USB versions, pluggable terminal block
- Low power: 200 mW active / 60 mW standby, 12 V input
