XL-F24MINI-NFC

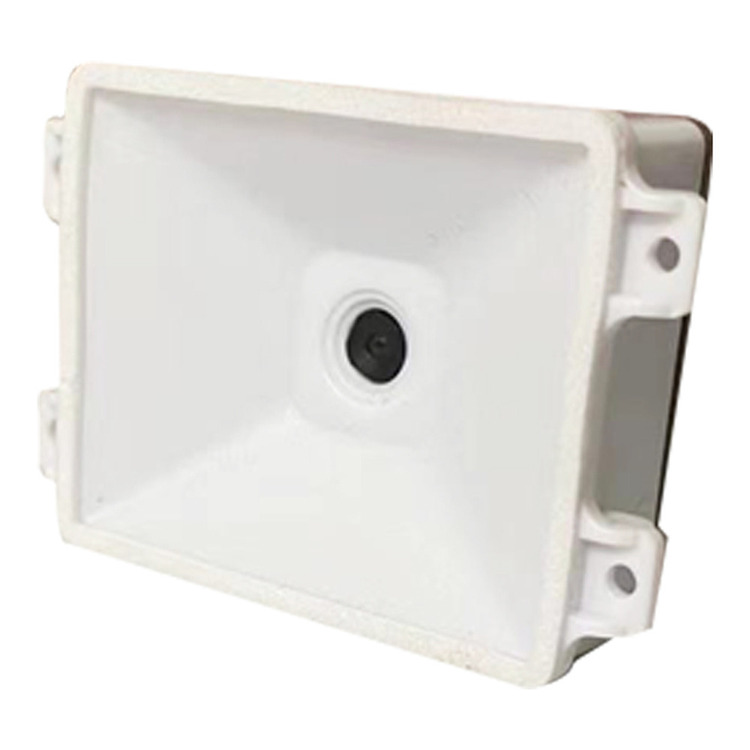

An ultra-thin embedded scanner with a 53.5 x 36 mm face and a 16 mm body that fits POS counters, pickup lockers and self-service kiosks. Its 640 x 480 CMOS sensor and 74° (H) x 58° (V) field of view deliver 1D 5 mil and 2D 10 mil precision at 25% print contrast, 80 cm/s motion tolerance on pay codes, and reliable reads of codes shown on screens without backlight. Depth of field runs 12-200 mm for WeChat Pay codes and 40-65 mm for refund codes. The unit draws 140 mA at 5 V from a 3.3-5 V DC (+/-5%) supply and connects over HID-KBW, HID-POS, USB virtual COM or TTL232. NFC is optional: ISO14443 TypeA/B and M1 cards at 0-4 cm, with sector and block reads. Weighing under 15 g in an ABS housing rated -20 to 60 C, it suits payment terminals, pickup lockers, smart home panels, storage cabinets, self-service kiosks and queue terminals.

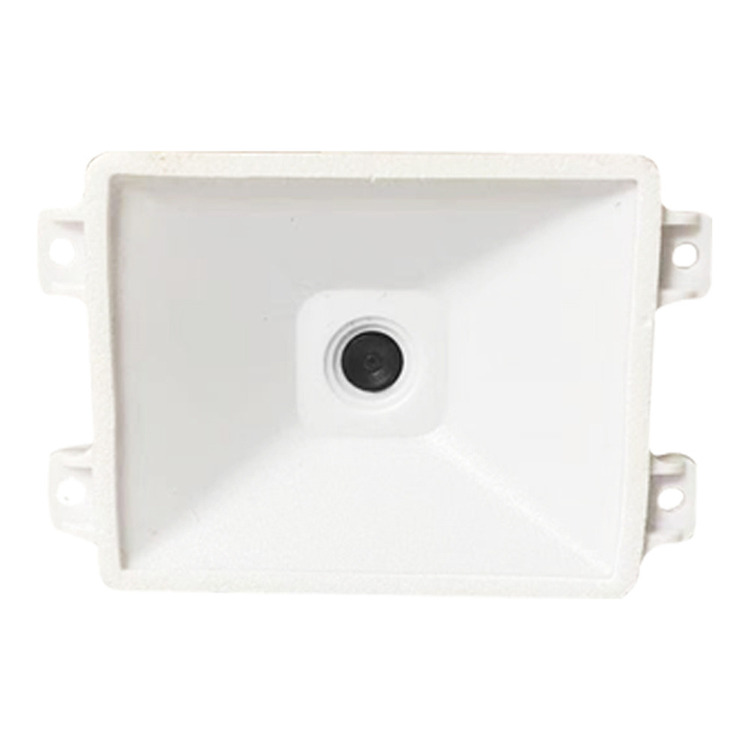

• Ultra-thin panel design: 53.5 x 36 mm face, 16 mm body
• 640 x 480 CMOS sensor at 30 fps
• 74 deg (H) x 58 deg (V) field of view with an extra-large window
• 5 mil (1D) / 10 mil (2D) precision; 25% print contrast
• 80 cm/s motion tolerance on pay codes; reads codes on screens without backlight
• Depth of field: WeChat Pay codes 12-200 mm, refund codes 40-65 mm
• Reading angles: 360 roll, +/-60 pitch, +/-60 skew
• Wide input 3.3-5 V DC (+/-5%) at 140 mA at 5 V
• Interfaces: HID-KBW (default), HID-POS, USB virtual COM, TTL232
• Enabled by default: EAN13, EAN8, UPC-A, UPC-E0/E1, Code128, Code39, Code93, CodaBar, QR Code, PDF417, DataMatrix
• Disabled by default: Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Code11, MSI Plessey, RSS-14/Limited/Expanded
• NFC (optional): ISO14443 TypeA/B and M1 at 0-4 cm, sector and block reads, decimal or hex output in either direction
• Vibration 5-200 Hz, 10 Grms, 3 axes, 1.5 Hr; ESD +/-6 KV contact, +/-12 KV air

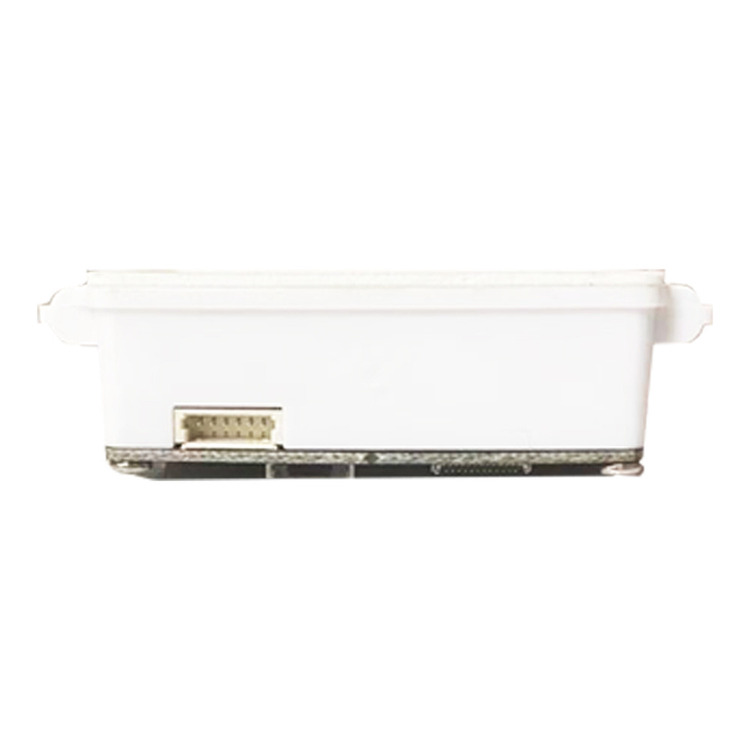

• 53.5 x 36 x 16 mm, under 15 g, ABS housing
• Operating -20 to 60 C, storage -40 to 70 C, humidity 5% to 95% RH non-condensing
