OEM Scan Engines

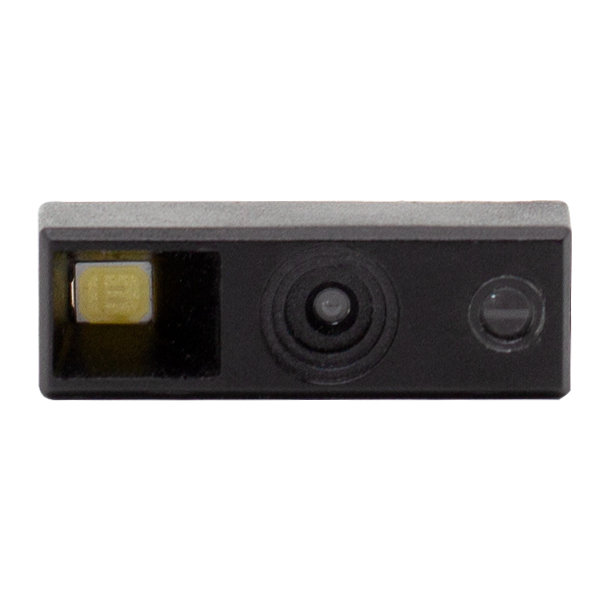

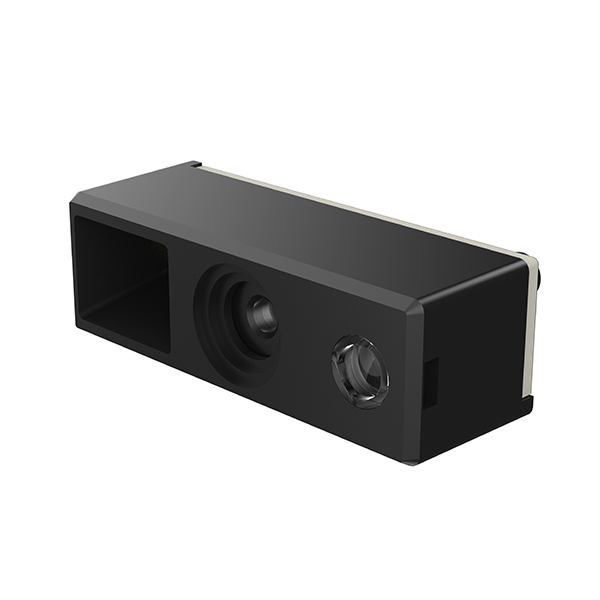

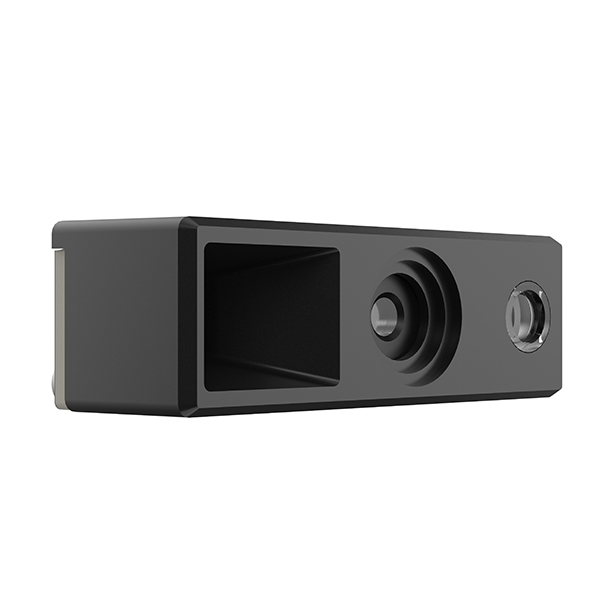

XL-M100P
Small size, full scenario capability. The XL-M100P embedded 2D scan module features an ultra-compact body at just 37.8x21.6x11.2mm, integrating USB/UART dual interfaces. Powered by advanced image recognition algorithms and a wide-angle optical lens, it effortlessly reads 1D/2D barcodes at high speed. It delivers excellent scanning performance in complete darkness and across wide temperature and humidity ranges, adapting to shock, vibration, and strong light exposure. Widely used in ring barcode readers, neck-worn readers, and Bluetooth pocket portable readers.
- Ultra-compact 37.8x21.6x11.2mm, highly integrated
- USB + UART dual interface, flexible integration
- Advanced image recognition + wide-angle optical lens
- Full darkness to strong exposure lighting adaptability
- Withstands shock, vibration, and harsh conditions
- Ideal for ring/neck-worn/Bluetooth portable readers
- 13Pin 0.3mm pitch flexible cable connection
