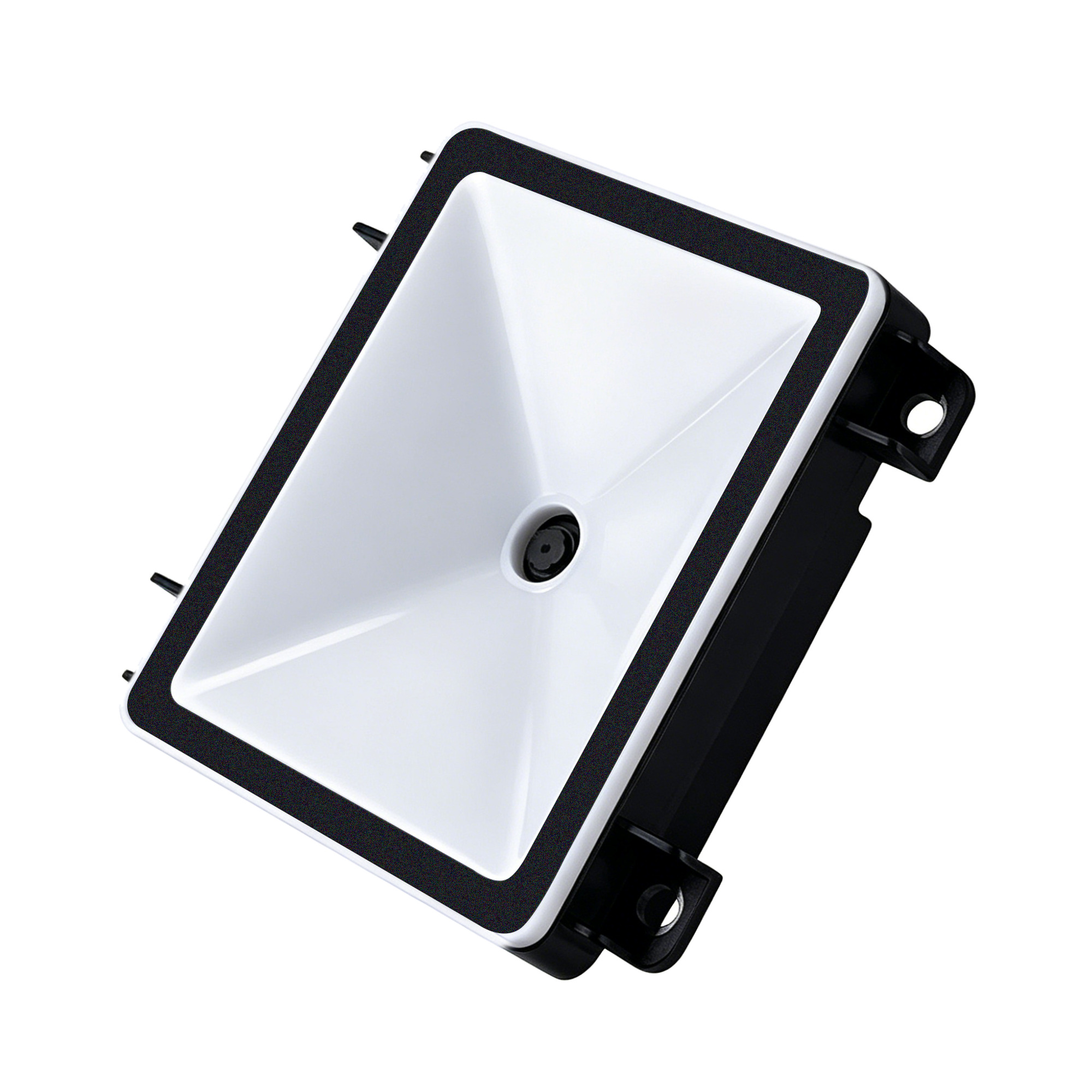

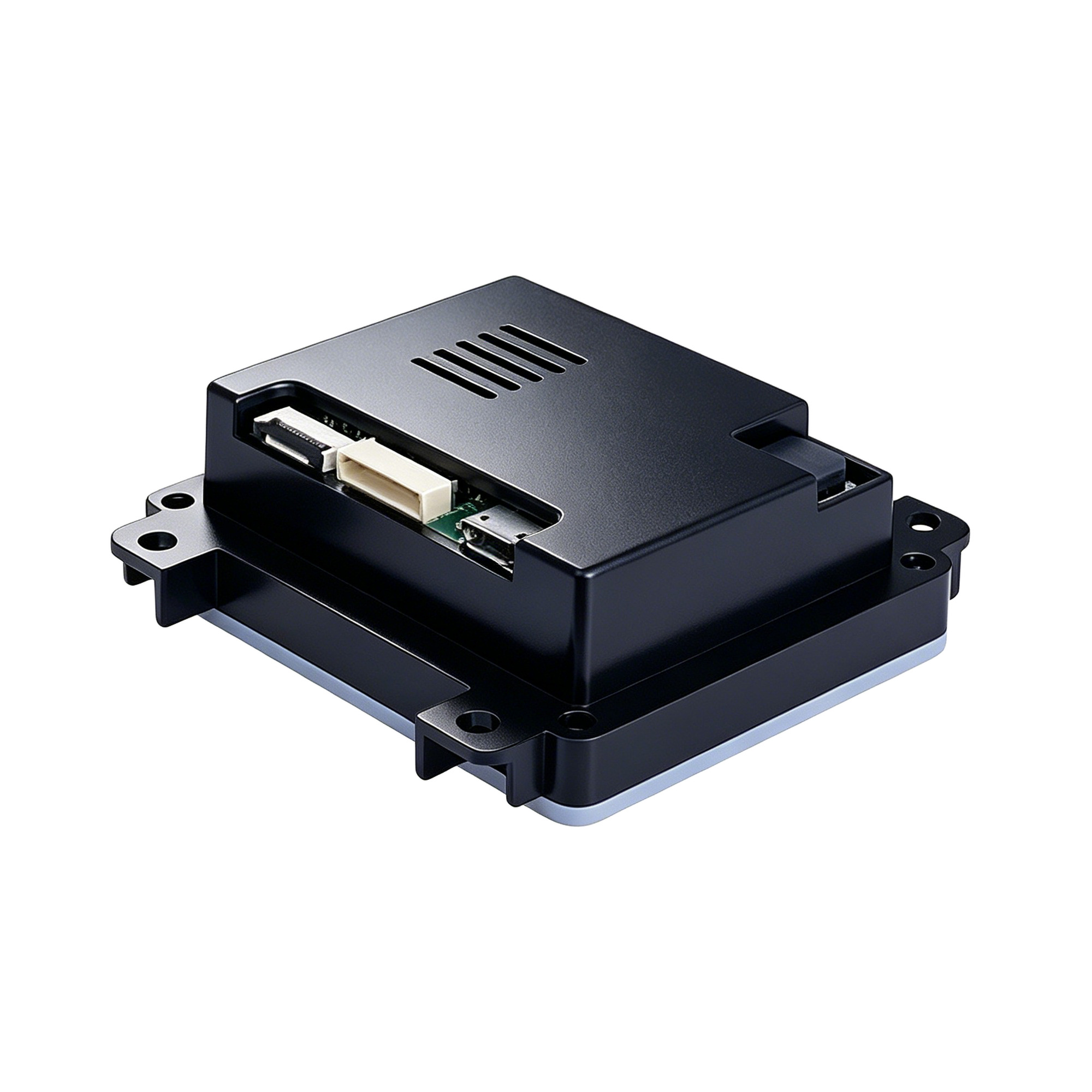

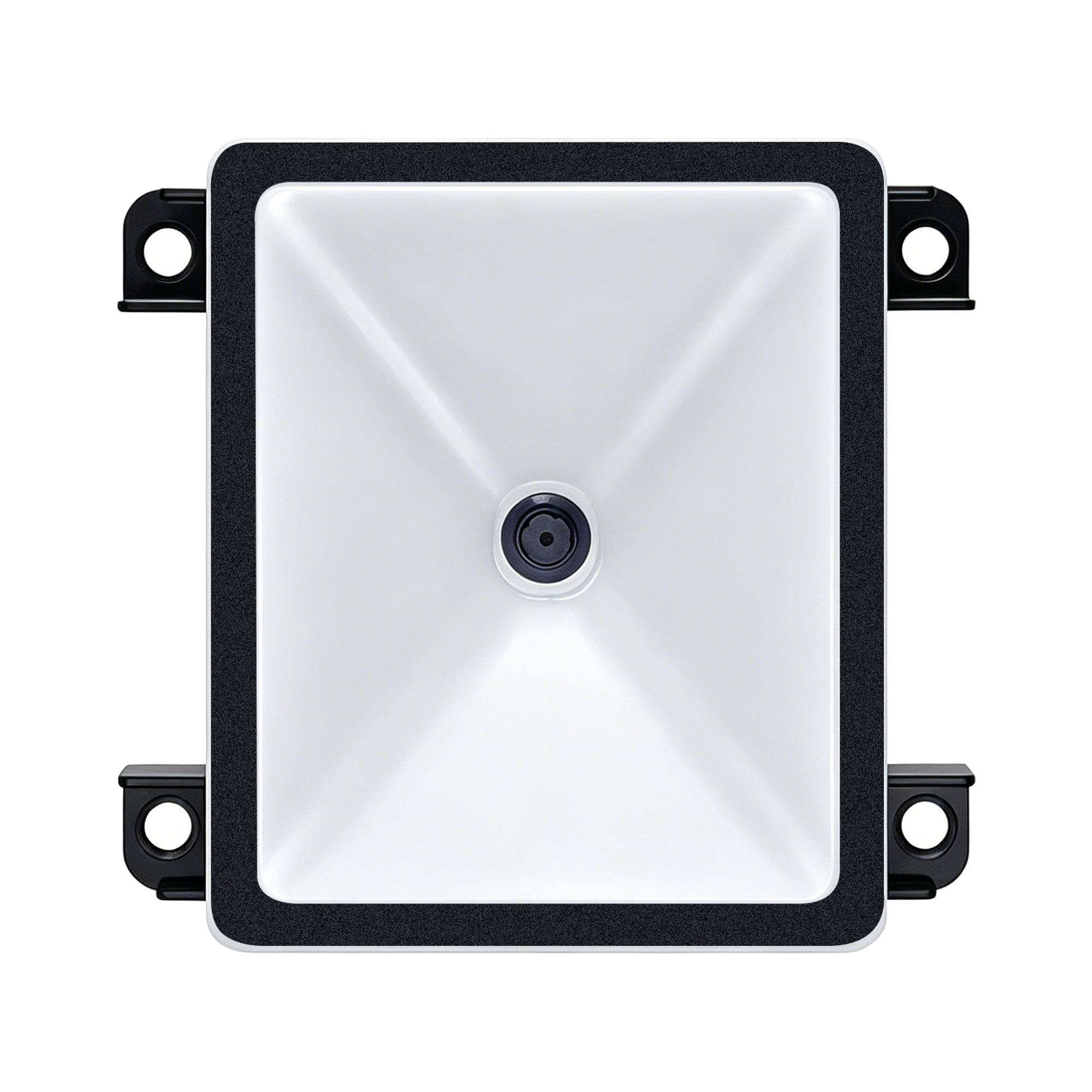

F42-NFC

An embedded NFC scan module that reads barcodes and cards in one unit. The F42-NFC pairs a 680x480 CMOS sensor with 4 mil precision and a 74.8 deg (H) x 46.2 deg (V) field of view, decoding reliably at 360 roll, +/-50 pitch and +/-50 skew. NFC reads cards at 0-40 mm on a 13.56 MHz antenna, covering S50/S70/NTAG/Fudan M1/Desfire and more. Depth of field: QR (15 mil) 25-140 mm, EAN13 (13 mil) 25-150 mm, PDF417 (6.67 mil) 40-90 mm and WeChat codes 45-200 mm. USB (HID/CDC/HIDPOS), TTL232 and RS232 interfaces, with a camera module replaceable per project. At 61.5 x 65 x 18.5 mm and 20 g it runs on DC 5.5-3.3 V drawing 300 mA at 5 V (1.5 W typical). Built for access control gates, smart lockers, self-service kiosks, retail POS, identity verification and logistics sorting - anywhere that needs scanning and card reading together.

• 4 mil precision with a 680x480 CMOS sensor
• Scanning and NFC card reading integrated in one module
• 74.8 deg (H) x 46.2 deg (V) field of view; print contrast from 20%
• Reading angles: 360 roll, +/-50 pitch, +/-50 skew
• Ambient light 0-100,000 LUX; white LED illumination, blue LED indicator, beeper
• NFC reading distance 0-40 mm on a 13.56 MHz antenna
• Supported cards: S50, S70, NTAG 213/215, Mifare-UltraLight, Fudan M1, Desfire EV1/EV2/EV3, Mifare plus 2K/4K, SR176, 15693
• Depth of field: QR (15 mil) 25-140 mm, EAN13 (13 mil) 25-150 mm, WeChat (15 mil) 45-200 mm, PDF417 (6.67 mil) 40-90 mm
• Interfaces: USB (HID / CDC / HIDPOS), TTL232, RS232
• Camera module replaceable per project to fit different scenes
• 2D symbologies: PDF417, QR Code, Data Matrix, Aztec, Micro QR, MaxiCode, HanXin, Grid Matrix, Code16K, Code49 and more
• 1D symbologies: Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, ITF, ISBN, Code 93, UCC/EAN-128, GS1 Databar and more
• Input voltage DC 5.5-3.3 V; average current 300 mA at 5 V
• Typical power 1.5 W; USB cable supplied
• Dimensions 61.5 x 65 x 18.5 mm (L x W x H); weight 20 g
• Operating temperature -20C to +50C; storage -40C to +60C
• Humidity 5% to 95% (non-condensing)
• Proprietary core decoding algorithm for fast reading of all kinds of barcodes
• Decode board and camera integrated into one compact, easy-to-mount design
• For access control gates, smart lockers, self-service kiosks, retail POS, identity verification and logistics sorting
